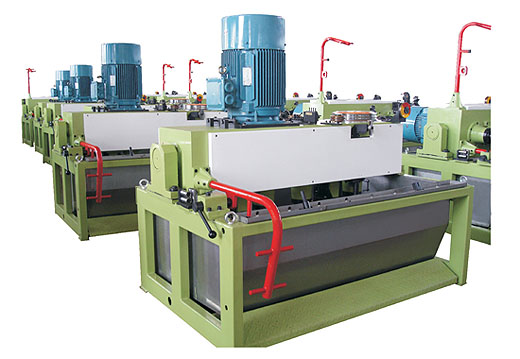

| Overturn wet wire drawing machine | | |
Product parameter
|
Item
|
LT21/275
|
LT23/280
|
LT25/230
|
|
Drawing drafts
|
21drafts
|
23drafts
|
25drafts
|
|
Max.inlet diameter
|
Φ1.80mm
|
Φ1.50mm
|
Φ1.50mm
|
|
Min.outlet diameter
|
Φ0.25mm
|
Φ0.10mm
|
Φ0.10mm
|
|
Drawing speed
|
20m/s
|
20m/s
|
20m/s
|
|
Motor power
|
22KW
|
18.5-30KW
|
18.5-30KW
|
|
Inlet wire tensile strength
|
≤1250Mpa
|
|
Transmission mode
|
Timing belt,AC frequency inverter controlspeed
|
|
Capstan production chart
|
Supersonic spray with WC, using life 22000 hour.
|
|
Cooling system
|
Capstan submerged in lubrication and cooling,tractor is hollow,recyclable water cooling inside,be suitable to high speed drawing.
|
|
Tensile strength system
|
Consist with tight and loose pulley,tensile cylinder is adjustable.
|
|
Arrange wire device
|
Ball screw,drived by frequency inverter motor or servo motor,realize precision lay wire and flat arrange wire.
|
|
|
Design and assemble all kinds of straightener,coil diameter of finished wire is stable and adjustable.
|
|
Take up mode
|
I-spooler take up
|
|
Control mode
|
AC frequency invert+PLC+man machine interface+constant,complete digital logic control
|
|
Drawing materials
|
Rope steel wire,steel rod,galvanized zinc iron wire,silicon slice saw wire,etc.
|
