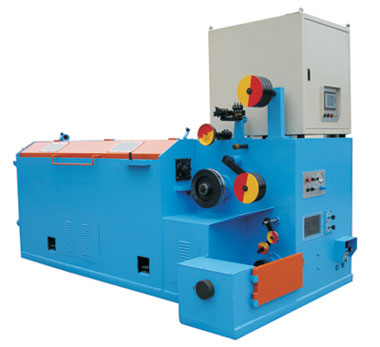

| High speed wet wire drawing and take up machine | | | High efficiency,energy saving stability,the most advanced machine in the metal industry.
|
|
Characters
·Innovation design and specification production chart,insure wet wire machine no leak in 3 years.
·Box type welding machine structure,safty and beauty,insure high speed drawing reliable and stable.
·Complete digital logic control,man machine interface,status display,information enquiry etc.
·Tensile strength take up steel wire nealty,counter meter precision,steel wire linearity better.
·Special design and control,satisfied with all kinds of I-spooler take up wire. |
Product parameter
|
Item
|
LT17/350
|
LT17/300
|
LT19/250
|
LT25/200
|
|
Drawing drafts
|
1+17drafts
|
1+17drafts
|
1+19drafts
|
25drafts
|
|
Max.inlet wire diameter
|
Φ3.5mm
|
Φ3.0mm
|
Φ2.2mm
|
Φ1.00mm
|
|
Min.outlet wire diameter
|
Φ0.8mm
|
Φ0.65mm
|
Φ0.3mm
|
Φ0.10mm
|
|
Drawing speed
|
10m/s
|
12m/s
|
16m/s
|
20m/s
|
|
Motor power
|
6-55KW
|
4-55KW
|
22-30KW
|
15-22KW
|
|
Inlet wire tensile strength
|
≤1250Mpa
|
|
Transmission mode
|
Timing belt and powerful narrow belt,AC frequency inverter control speed
|
|
Capstan production chart
|
Supersonic spray with WC,axiality＜0.025 using life 22000 hour.
|
|
Cooling system
|
Capstan submerged in lubrication and cooling,tractor is hollow,recyclable water cooling inside,be suitable to high speed drawing.
|
|
Tensile strength system
|
Consist with tight and loose pulley,tensile cylinder is adjustable,and assemble double color protect cover.
|
|
Arrange wire device
|
Ball screw,drived by frequency inverter motor or servo motor,realize precision lay wire and flat arrange wire.
|
|
Steel wire liearity
|
Design and assemble all kinds of straightener,coil diameter of finished wire is stable and adjustable,slove twisting problem.
|
|
Take up mode
|
I-spooler take up
|
|
Control mode
|
AC frequency invert+PLC+man machine interface+constant,complete digital logic control
|
|
Drawing materials
|
Rope steel wire,steel rod,stainless wire,copper wire,aluminiun wire etc.
|
