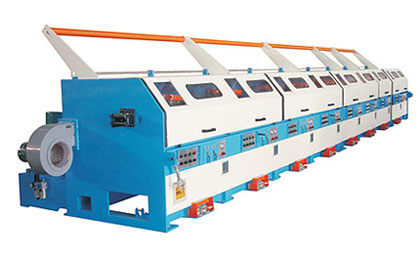

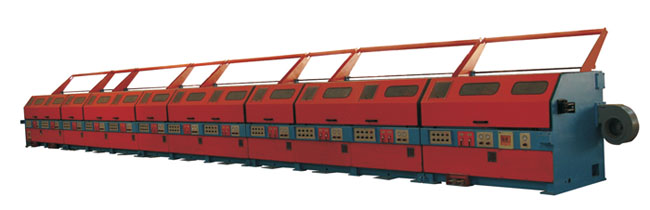

| Straight wire drawing machine | | |
 |
Equipment characteristics
□ Main transmission adopt creative design high precision hard tooth gear box.
□ Special production chart,insure no oil leak with gear box in 3 years.
□ Building up welding or spray welding with drawing drum,insure no groove in 3 years.
□ Box type machine structure,dynamic balance test with main transmission shaft.
Electrical control system
ProfiBus or analog to digital conversion technology
Safty completely closed machine which has several protection functions.
Function design concentrate air colling,low voltage lighten system,auto powder mixing,ration refuel man-machine interface,skip mould running,status display,information enquiry,etc. |
Product parameter
|
Item
|
LZ400/2-12
|
LZ450/2-12
|
LZ560/2-13
|
LZ600/2-10
|
|
Drawing drafts
|
2-12 drafts
|
2-13 drafts
|
2-13drafts
|
2-10drafts
|
|
Inlet wire tensile strength
|
≤1350Mpa
|
≤1350Mpa
|
|
Max.inlet wire diameter
|
Φ4.0mm
|
Φ4.5mm
|
Φ5.5mm
|
Φ6.5mm
|
|
Min.outlet wire diameter
|
Φ0.7mm
|
Φ1.0mm
|
Φ1.3mm
|
Φ1.6mm
|
|
Max.drawing speed
|
18m/s
|
16m/s
|
15m/s
|
12m/s
|
|
Motor power
|
11-18.5KW
|
15-22KW
|
22-37KW
|
30-37KW
|
|
Transmission mode
|
Powerful marrow belt group
|
hard tooth surface gear box
|
|
Control speed mode
|
AC frequency inverter mode
|
|
Electrical control system
|
ProfiBus or analog to digital conversion,complete digital control
|
|
Pay off mode
|
I-spooler pay off machinie,high rack pay off or other coiler pay off mode
|
|
Take up mode
|
I-spooler take up machine
|
|
Drawing materials
|
Steel rod,rope steel wire,stainless steel wire,galvanized steel wire,welding wire,etc.
|
